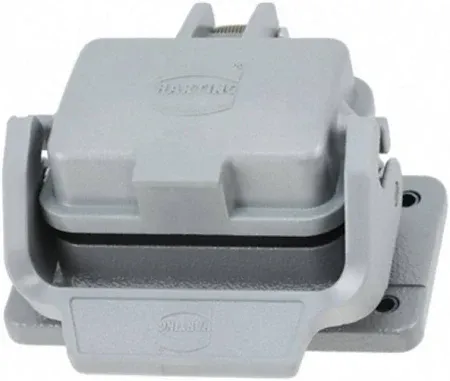

HARTING 09300060302 — Han B Base Panel 1 Lever (Thermoplastic C)

---

Overview

The HARTING 09300060302 is a robust bulkhead / panel mount housing (base) from the Han® B series. Designed for industrial connector assemblies, it provides a low-profile, single-lever clamping mechanism, a thermoplastic cover, and compatibility with size 6B inserts.

This housing forms the fixed side of a connector interface: a mating hood or insert is installed on the cable side, and when mated, the assembly delivers environmental protection and mechanical reliability.

---

Key Features & Specifications

Feature	Specification
Series / Type	Han® B, bulkhead-mounted housing with cover (“Thermoplastic C”)
Housing / Material	Die-cast aluminium body, powder-coated, RAL 7037 “dust grey” finish
Cover	Thermoplastic / polycarbonate cover for added protection
Size / Module	Size 6B (for Han B 6-pole / multi-pin inserts)
Locking Mechanism	Single locking lever, Han-Easy Lock® style
Protection / Ingress	Rated IP65 (mounted and sealed) per IEC 60529
Temperature Range	–40 °C to +125 °C
Mating Cycles	≥ 500 cycles (mechanical durability)
Seal / Gasket	NBR (nitrile rubber) gasket / seal included in the housing design
Fasteners / Fixing	Uses M4 mounting screws
Weight	~80 g net (housing only)
Approvals / Ratings	UL 50 / UL 50E ratings, 4 / 4X / 12 type rating

---

Benefits & Use Cases

• Panel Mount / Bulkhead Integration: Ideal for embedding in machine enclosures, cabinets, and control panels.
• Compact & Low Profile: The “low construction” design minimizes protrusion into the enclosure.
• Quick & Reliable Locking: Single lever clamp offers fast mating with consistent force.
• Protection in Harsh Environments: The IP65 rating, sealed gasket and solid materials guard against dust and water jets.
• Flexible Insert Compatibility: Works with Han B 6B series inserts and mating hoods to build full connector assemblies.
• Temperature & Mechanical Durability: Performs across wide temperature ranges and withstands repeated mating cycles.

---

Ordering & Compatibility Notes

• Housing Only: This product is the panel / base housing. It does not include the electrical insert, contacts, or mating hood.
• For a complete connector, you’ll need to pair this housing with a compatible 6B series insert and a matching hood or cable-side housing.
• Ensure correct orientation, torque, and gasket alignment during assembly to achieve the rated IP protection.
• Confirm the panel cutout and mounting hole pattern match the datasheet dimensions.
• Check local electrical safety and certification requirements (e.g. UL, IEC) especially for your region/application.
