ILME CAO16L21 — Side‑Entry Hood, PG21, 16‑Pole
$35.00
ILME CAO16L21 — Side‑Entry Hood, PG21, 16‑Pole
3 available
1
Product Details
- Cable‑to‑panel / cable‑to‑cable multipole connections where side cable routing is needed
- Industrial automation, machine control, robotics, control cabinets
- Environments with dust, moisture, vibration exposure
- Situations requiring modular plug / socket connector systems with lateral cable exit
- This is the hood housing only — it does not include the electrical insert (contacts) or the matching base / counterpart housing.
- To build a full connector, you need:
1. A compatible insert (female or male) of the 16‑pole design
2. A matching bulkhead / base housing of the 77.27 shell size
3. A suitable PG21 cable gland (for your cable outside diameter) to maintain sealing
4. Correct gasket seating, alignment, and torque to achieve the rated IP protection - Check that peg placement and lever orientation match your mating housing / base.

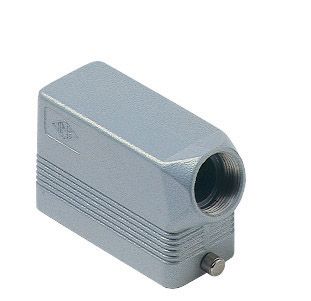

ILME CAO16L21 — Side‑Entry Hood, PG21, 16‑Pole, High Construction
ILME CAO16L21 Hood (Side Entry, PG21)
Product Overview
The ILME CAO16L21 is a rugged, high‑construction hood (cable‑side housing) in the ILME C‑Type connector family. It is designed for side cable entry via a PG21 threaded opening and fits the 77 × 27 mm (“77.27”) modular shell size. With 2 alignment pegs and side entry orientation, it is ideal for applications where the cable exit must be lateral rather than top.
When mated with matching ILME inserts and a bulkhead / base housing, this hood forms part of a sealed connector system suitable for harsh industrial environments.
Key Features & Benefits
| Feature | Description |
|---|---|
| Cable Entry / Thread | Side entry via PG21 (for compatible PG21 cable glands) |
| Shell / Size | 77.27 mm (for 16‑pole / larger multipole C‑Type connectors) |
| Construction Type | High construction (greater internal clearance) |
| Alignment Pegs | 2 pegs for mechanical alignment |
| Locking / Clamping System | Uses ILME stainless‑steel / resin “IL‑BRID” lever system, ensuring consistent clamping force over many mating cycles |
| Material & Finish | Die‑cast aluminum housing with epoxy / protective coating |
| Ingress Protection | Rated IP65 (and in many cases IP66 / IP69 when properly assembled) |
| Temperature Range | –40 °C to +125 °C |
| Gross Weight | ~218 g (for the housing) |
| Gland Holes | One PG21 gland hole for cable entry |
Applications & Use Cases
Typical Specification Summary
| Spec | Value |
|---|---|
| Product Type | Hood / cable‑side housing |
| Series / Family | C‑Type (ILME) |
| Cable Entry | PG21, side orientation |
| Shell Size | 77.27 mm |
| Pegs | 2 |
| Construction | High (increased height) |
| Protection (mated) | IP65 / IP66 / IP69 (depending on assembly) |
| Material | Die‑cast aluminum, epoxy finish |
| Temperature Range | –40 °C to +125 °C |
| Compatible Inserts / Bases | ILME 16‑pole or matching C‑Type 77.27 components |
Ordering & Compatibility Notes
