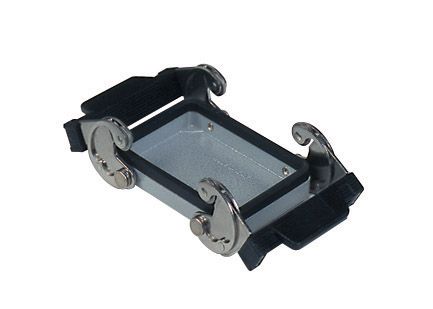

ILME CHC50G — Protection Cover / Dust Cap, Metal, 2 Levers, Gasketed (Size 66.40)

Product Overview

The ILME CHC50G is a robust metallic rectangular protection cover (dust cap) designed for ILME C‑Type (CH series) connector housings of size 66.40 mm. It features dual stainless steel locking levers, an integrated gasket, and a loop for handling, ensuring high reliability in industrial environments. When installed and locked onto a complementing housing (with matching pegs), it protects the connector from dust, moisture, and environmental contaminants.

Key Features & Specifications

Benefits & Use Cases

• Provides a sealed cover when a connector is not mated, preserving the internal environment of the connector system
• Protects contacts, insert cavities, and internal components from dust, water spray, and contamination
• The gasket and double lever locking provide better sealing reliability over repeated cycles
• Ideal for use during maintenance, disconnection periods, or as a spare protective cap
• Compatible with housings or hoods that use 4 pegs (the cover is designed to mate with matching peg layouts)

Ordering & Compatibility Notes

• Cover only: CHC50G does not include any electrical contacts, insert modules, or a base housing
• Must be paired with a complementary connector hood or base having matching peg positions and the correct shell / size (66.40 mm)
• Ensure that the housing you pair it with supports 4 pegs alignment (the cover is typically for housings with 4 pegs) 2
• For full ingress protection (IP66), proper engagement, gasket alignment, and correct lever torque are required
• Check that the cover’s lever architecture does not interfere with housing levers, panel edges, or cable positions
• Reference the specific “G” version when ordering (the gasketed variant) to ensure sealed performance
