ILME CHI‑24L — Bulkhead Mounting Housing / Base (C‑Type, Size 104.27)
$37.80
ILME CHI‑24L — Bulkhead Mounting Housing / Base (C‑Type, Size 104.27)
1 available
1
Product Details
ILME CHI‑24L — Bulkhead Mounting Housing / Base (C‑Type, Size 104.27)

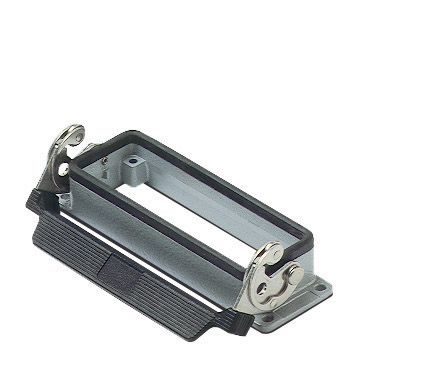

ILME CHI‑24L Bulkhead Mount Housing
Product Overview
The ILME CHI‑24L is a robust, industrial-grade bulkhead / panel-mount housing (base) in ILME’s C‑Type connector family. It features a 104 × 27 mm (104.27) modular shell size and dual-lever locking for secure, repeatable engagement. This housing supports connector inserts mounted on the cable or device side, forming a sealed interface when mated with compatible hoods.
Key highlights:
- Die-cast aluminum body with epoxy coating
- Two stainless-steel locking levers with constant clamping force
- Rated for IP66 protection when mated and locked down
- Compatible with many 24‑pin and multi‑pin insert modules
Key Features & Specifications
| Feature | Detail |
|---|---|
| Series / Family | ILME C‑Type (CH) series bulkhead housings |
| Shell / Module Size | 104.27 mm (104 × 27 mm) |
| Locking / Closure | Dual-lever locking; constant clamping even after cycles |
| Ingress Protection (Mated) | Rated IP66 (dust-tight, protection from high-pressure water jets) |
| Temperature Range | –40 °C to +125 °C |
| Material & Finish | Die-cast aluminum body, epoxy coat; polyamide handles, stainless steel levers |
| Weight | ~176.6 g |
| Certifications / Approvals | DNV‑GL, BV, UL (ECB T2), cUL (ECB T8) |
| Mechanical Life | Designed for at least 500 mating cycles under full clamping force |
| Insert Compatibility | Works with many 24‑pin / multi‑pin insert modules (CD, CDD, CQE families) |
Benefits & Use Cases
- Reliable panel integration — ideal for mounting on control rooms, cabinets, or machine walls where a stable connector interface is needed
- Robust sealing & protection — when mated, the housing helps maintain environmental resistance (dust, water jets)
- High mechanical durability — dual-lever locking ensures consistent force over many connections/disconnections
- Modularity & flexibility — part of ILME’s modular ecosystem; you can mix and match inserts, hoods, and accessories
- Suitable for demanding industrial environments — supports harsh ambient conditions, temperature ranges, vibration, and repeated use
Ordering & Compatibility Notes
- This listing is for the housing (base) only — it does not include inserts, contact modules, or mating hoods.
- To assemble a complete connector, you will need:
1. A compatible insert (male or female) matching your pin count and current/voltage requirements
2. A mating hood or cable-side housing of the same 104.27 shell size
3. Proper gaskets, alignment, and torque settings to preserve the IP66 seal - Confirm that the lever, peg layout, and mounting holes align with your panel or mating parts
- Note that some variants (e.g. CHI‑24L, CHI‑24C, CHI‑24CP) may differ in lever count, peg layout, or cover options
