ILME CHO 10 / CHO 10L – 10‑Pin Side‑Entry Hood, PG16 Threaded

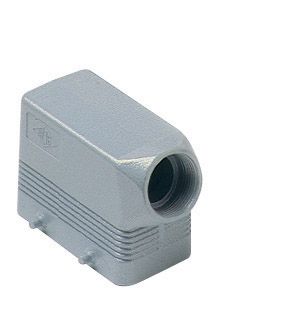

ILME CHO 10 L 10 Pin Hood (Side Entry PG16)

Product Overview

The ILME CHO 10 (and variant CHO 10L) is a rugged metal hood (housing cover) for ILME C‑Type rectangular multipole connectors (module size 57 × 27 mm, often referred to as “57.27”). It provides side cable entry via a PG16 thread and is designed to protect connections and maintain ingress protection when mated with appropriate bases and inserts.

In the ILME modular connector ecosystem, the hood forms the cable‑side housing into which the 10‑contact insert is installed, then mated with a matching base or counterpart connector.

Key Features & Benefits

Applications & Use Cases

• Industrial automation, machinery, robotics
• Control panels, machine tool wiring, field junctions
• Environments where side cable routing is preferred (not top entry)
• Situations requiring sealed, heavy duty multipole connector systems
• Replacements or upgrades in existing ILME C‑Type systems

Ordering & Compatibility Notes

• The hood is sold as housing only (no contacts/insert or base). You’ll need to pair it with the matching 10‑pin insert and base / counterpart connector.
• Variant selection: If your layout constraints favor a lower profile, use CHO10L (2 pegs) instead of standard CHO10 (4 pegs)
• Use a PG16 cable gland sized appropriately for your cable outer diameter, with proper sealing to maintain IP rating.
• Torque, gasket alignment, and correct assembly are important to achieve the claimed IP protection.
• The hood is part of ILME’s modular C‑Type ecosystem, so it’s generally compatible with other CH / CN series parts in the same size class.
• Ratings (current, voltage) depend on the insert/contacts you select, not this housing itself.
