ILME CNEF10T Female Insert (10 Pole + PE, Screw Termination)

Overview

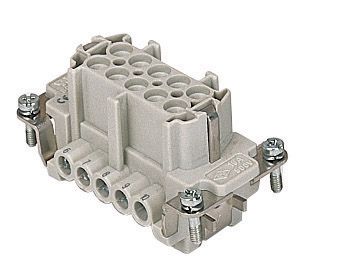

The ILME CNEF10T is a heavy-duty, high-reliability female insert for ILME modular rectangular connectors (CNE series). It accommodates 10 signal contacts plus protective earth (PE) and uses screw‑terminal connections, making it suited for industrial automation, control, and machinery environments.

When assembled into compatible ILME hoods and bases, it forms a robust, sealed connector interface.

Key Features & Benefits

• Contact Configuration: 10 signal contacts + 1 protective earth (PE)
• Current Rating: 16 A per contact
• Voltage Rating: 500 V (ILME lists 500 V in many sources)
• Termination Style: Screw terminals, enabling secure, serviceable wiring
• Housing & Materials:
  • Body: Glass‑reinforced thermoplastic, self‑extinguishing (UL 94 V‑0)
  • Contacts: Silver‑plated for improved conductivity and corrosion resistance
• Operating Temperature Range: –40 °C to +125 °C
• Wire Size Range: Typically accepts AWG 14 to AWG 20 (or equivalent metric cross-sections)
• Mechanical Durability: Designed for repeated mating cycles when used in connector assemblies
• Standards & Compliance: RoHS compliant, UL/CSA recognized in many configurations

Applications & Use Cases

• Industrial automation and control cabinet wiring
• Machine tool interfaces and field-cable connections
• Environments requiring quick‑disconnect multipin connectors
• Use in modular connector systems where sealed, rugged connector assemblies are required

Typical Specification Summary

Ordering & Compatibility Notes

• The CNEF10T insert is intended to be mounted inside a compatible ILME hood or base (e.g. CH, CA, CN series) of the same module size.
• Since the insert itself is not a sealed enclosure, the mating hood/base must supply the sealing gasket to achieve the desired IP rating when mated.
• Use proper torque on screws and follow recommended wiring practices to ensure contact reliability.
• The insert is often paired with male inserts (e.g. CNEM10T) in connector assemblies.
