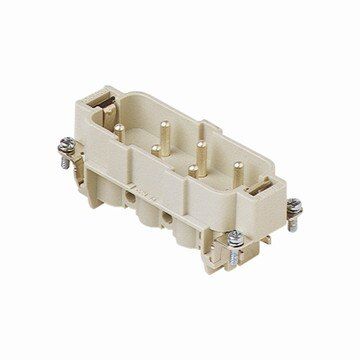

ILME CPM06 6 pin Male insert
$33.00
ILME CPM06 — 6‑Pin + Earth Male Insert (CP Series)
2 available
1
Product Details
ILME CPM06 — 6‑Pin + Earth Male Insert (CP Series)
Also Known As: CPM‑06, CP M06, ILME CP series male insert, 6P+E screw‑in insert
Product Overview
The ILME CPM06 is a heavy‑duty male insert (plug half) designed for ILME’s CP series rectangular connectors. It offers 6 signal contacts plus protective earth (PE) and uses screw‑terminal connections, making it suitable for industrial control, automation, machinery, and motor applications.
When installed into a compatible ILME housing (hood / base), this insert becomes part of a sealed, rugged connector assembly.
Key Features & Benefits
- Contact Configuration: 6 signal contacts + protective earth (PE)
- Current Rating: 35 A per contact
- Voltage Rating: 600 V (some sources list up to 690 V)
- Termination Style: Screw terminals (screw / clamp type)
- Housing Material: Glass-reinforced thermoplastic (self-extinguishing)
- Contact Plating: Silver-plated contacts for good conductivity and corrosion resistance
- Operating Temperature: –40 °C to +125 °C
- Mechanical Durability: Designed for repeated mating/unmating cycles when used with compatible hoods/bases
- Protection / Ingress (unmated): IP20 (no sealing in unmated state)
- Compatible Insert Size / Housing Footprint: Designed for 77 × 27 mm (“77.27”) CP series housings
- Wire Size Range: Accepts ~10 AWG down to ~16 AWG (depending on installation)
Typical Specifications (Summary)
| Specification | Value |
|---|---|
| Series / Family | ILME CP / CP series |
| Gender | Male insert / plug |
| Poles | 6 + Earth (PE) |
| Current | 35 A |
| Voltage | 600 V (some listings up to 690 V) |
| Termination Method | Screw / clamp |
| Housing Material | Glass-reinforced thermoplastic (self-extinguishing) |
| Contact Plating | Silver |
| Operating Temperature | –40 °C to +125 °C |
| Mechanical Durability | Many mating cycles (as per ILME spec) |
| Protection (Unmated) | IP20 |
| Footprint / Module Size | 77 × 27 mm (“77.27”) |
| Wire Range | ~10 AWG to ~16 AWG |
Applications & Use Cases
- Industrial automation equipment
- Motor control and drive interfaces
- Panel-to-cable or cable-to-cable connections requiring rugged multi-pin plug
- Harsh environments (when mated with proper sealing housings)
- Quick‑disconnect modular connector systems
Ordering & Compatibility Notes
- Insert only: The CPM06 is only the male insert module — it does not include the housing, hood, base, or sealing accessories.
- To form a complete connector, pair it with a compatible female insert and matching housing / hood / base that supports the 77.27 size.
- Sealing (IP rating in assembly) is achieved via the mating housings / gaskets, not by the insert itself.
- Use recommended torque values for screw terminations and follow wiring best practices to avoid loosening or damage.
