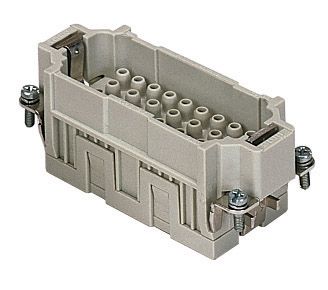

ILME CQEF32 — 32‑Pin male Crimp Insert (CQE Series)

Product Overview

The ILME CQEM32 is a high‑density, heavy‑duty male insert designed to fit into ILME’s modular rectangular connector system (CQE / C‑Type series). With 32 contact points plus a protective earth (PE), this insert is ideal where high signal or power density is required in a compact footprint. It uses crimp termination, facilitating reliable field wiring in industrial and automation applications.

This insert is intended to be housed inside compatible hoods and bases (e.g. 77.27 module size) to form a sealed, rugged multipole connector interface.

Key Features & Specifications

Benefits & Use Cases

• High density in compact space: Provides 32 contact points in a relatively small 77.27 module footprint.
• Modular & flexible: Works with matching ILME hoods, bases, and components to build sealed, rugged connector systems.
• Reliable field connections: Crimp termination ensures low resistance and durable connections, suitable for industrial usage.
• Wide applicability: Useful in automation, control systems, robotics, and machinery where many signals or power lines must be passed through a connector.
• Long service life: Designed for many mating cycles and stable performance in harsh environments.

Recommended Configurations & Accessories

• Mating female insert: CQEF‑32 (same series, 32 contacts)
• Compatible hoods / bases: ILME C‑Type 77.27 hoods, bulkhead bases, etc.
• Crimp contacts: Use ILME’s approved crimp pins (e.g. CCFA / CCFD series) sized for AWG 12–26 as recommended.
• Sealing accessories: Ensure proper gasket, alignment, torque, and mating housing to achieve rated ingress protection when assembled.

Ordering & Compatibility Notes

• Insert only: The CQEM32 is just the insert module. It does not include housing, hood, or contact pins.
• Choose the correct mating components (hood, base) of module size 77.27 to maintain compatibility.
• Ensure proper alignment of pegs / mounting features to match your connector housing.
• Confirm that crimp tools, contacts, and wire sizes are compatible with this insert for reliable connections.
• For full ingress protection (e.g. IP65, IP66, IP69), the insert must be enclosed in the proper hood/base assembly with correct gasket and mounting procedure
