ILME MHO06L20 Hood — 6‑Pole Side‑Entry M20, 2 Pegs, Single Lever
$18.00
ILME MHO06L20 Hood — 6‑Pole Side‑Entry M20, 2 Pegs, Single Lever
5 available
1
Product Details
ILME MHO06L20 Hood — 6‑Pole Side‑Entry M20, 2 Pegs, Single Lever
Overview

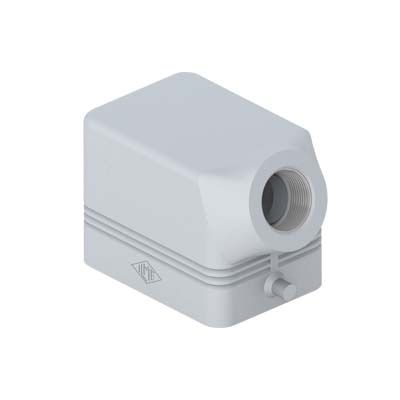

The ILME MHO06L20 is a rugged metal housing (hood) designed to protect and route cables into ILME’s modular rectangular connectors. It accepts side cable entry through an M20 thread, includes 2 alignment pegs, and uses a single lever locking mechanism for easy yet secure coupling. It is intended for the 44.27 mm shell dimension (the “6B / 6‑pole” class) of the ILME C‑Type family.
When mated with a compatible base and 6‑pole insert, this hood forms a sealed, industrial‑grade connector interface.
Key Features & Specifications
Feature
Description
Housing Type / Series
ILME C‑Type (MHO hood family)
Shell Size / Insert Compatibility
44.27 mm (compatible with 6‑pole / “6B” inserts)
Cable Entry Orientation
Side entry (90°) via an M20 threaded opening
Locking Mechanism
Single lever clamp for secure mating
Alignment Pegs
2 pegs for mechanical alignment
Material / Finish
Die‑cast aluminium with epoxy coating (grey)
Ingress / Protection (Mated)
Typically rated IP66 when assembled properly with gasket/base
Operating Temperature Range
–40 °C to +125 °C (typical for ILME C‑Type components)
Lever Design
IL‑BRID stainless steel + resin lever, designed for smooth operation with low friction and durable locking force
Feature | Description |
---|---|
Housing Type / Series | ILME C‑Type (MHO hood family) |
Shell Size / Insert Compatibility | 44.27 mm (compatible with 6‑pole / “6B” inserts) |
Cable Entry Orientation | Side entry (90°) via an M20 threaded opening |
Locking Mechanism | Single lever clamp for secure mating |
Alignment Pegs | 2 pegs for mechanical alignment |
Material / Finish | Die‑cast aluminium with epoxy coating (grey) |
Ingress / Protection (Mated) | Typically rated IP66 when assembled properly with gasket/base |
Operating Temperature Range | –40 °C to +125 °C (typical for ILME C‑Type components) |
Lever Design | IL‑BRID stainless steel + resin lever, designed for smooth operation with low friction and durable locking force |
Benefits & Use Cases
- Protects multipole cable interfaces in industrial or harsh environments
- Side‑entry orientation allows routing alongside enclosures or panels
- Lever locking ensures fast, reliable mating without tools
- Durable construction suited for frequent mating/unmating
- Compatible with standard ILME 6‑pole inserts and C‑Type connector ecosystem
Typical Specification Summary
Parameter
Typical Value
Housing Type
Hood / Cable‑side housing
Entry Thread
M20 (side)
Locking
Single lever
Alignment Pegs
2 pegs
Shell / Module Size
44.27 mm (6‑pole class)
Protection Rating (when mated)
IP66
Material
Die‑cast aluminium, epoxy coated
Temperature Range
–40 to +125 °C
Compatible With
ILME 6‑pole inserts, matching bases / hoods
Parameter | Typical Value |
---|---|
Housing Type | Hood / Cable‑side housing |
Entry Thread | M20 (side) |
Locking | Single lever |
Alignment Pegs | 2 pegs |
Shell / Module Size | 44.27 mm (6‑pole class) |
Protection Rating (when mated) | IP66 |
Material | Die‑cast aluminium, epoxy coated |
Temperature Range | –40 to +125 °C |
Compatible With | ILME 6‑pole inserts, matching bases / hoods |
Ordering & Compatibility Notes
- This is the hood housing only — it does not include inserts (contacts) or the mating base / counterpart housing.
- To assemble a full connector, you’ll need:
- A compatible 6‑pole insert (male or female)
- A base / bulkhead housing of the same shell size
- Gasket / seal and proper alignment to maintain ingress protection
- Select an appropriate M20 cable gland (or conduit interface) matching the cable outer diameter and sealing requirements.
- Pay attention to lever torque, gasket seating, and alignment to ensure IP66 sealing.
- Confirm orientation (side or top entry) is correct for your application — this MHO06L20 is a side‑entry version.
- A compatible 6‑pole insert (male or female)
- A base / bulkhead housing of the same shell size
- Gasket / seal and proper alignment to maintain ingress protection
