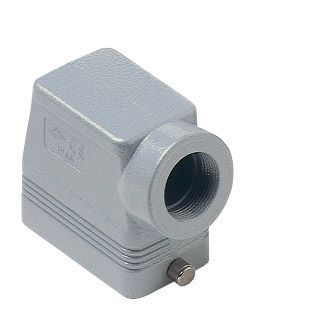

ILME MHO10L20 — 10‑Pin Hood, Side Entry, M20 Thread, 2 Pegs, Size 57.27

Product Overview

The ILME MHO10L20 is a durable, heavy‑duty side entry hood (cover) designed for ILME’s C‑Type rectangular connector family. It supports 10‑pole insert configurations, accepts side cable entry via an M20 threaded opening, and features a compact, low‑profile design with 2 alignment pegs.

This hood is intended to mate with compatible ILME inserts and bases (57 × 27 mm “57.27” module size) to form a sealed, rugged multipole connector assembly for industrial applications.

Key Features & Benefits

Applications & Use Cases

• Connection points in industrial machinery, automation systems, control panels
• When side routing of cables is preferred (versus top entry)
• Situations requiring sealed multipole connector systems (dust, moisture, oil, vibration)
• Environments where a lower profile / compact hood is needed

Specifications at a Glance

Ordering & Compatibility Notes

• Hood only: This is the housing (hood) — it does not include contacts, insert modules, or the mating base.
• To form a full connector, it must be paired with compatible 10‑pin inserts and matching base / counterpart housings of the same 57.27 modular dimension.
• Use a compatible M20 cable gland (suitable diameter, IP rated) to maintain ingress protection.
• Pay attention to gasket orientation, torque specs, and proper alignment to preserve sealing performance.
• This hood is part of ILME’s modular connector ecosystem, so it integrates with other C‑Type accessories (e.g. gaskets, mounting brackets) when used properly.
