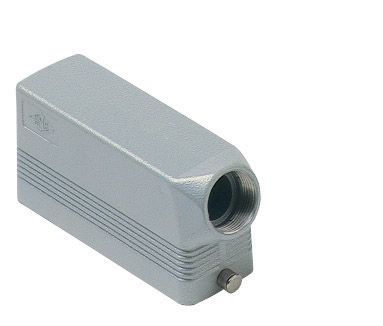

ILME MHO24L25 — Side‑Entry Hood, M25, 2 Pegs, Low Profile (Size 104.27)

Product Overview

The ILME MHO24L25 is a heavy‑duty metal hood (cable‑side housing) in the ILME C‑Type (H / MH family) connector series. It is designed for side cable entry via an M25 thread, features 2 alignment pegs, and is suited to the 104 × 27 mm (104.27) shell dimension. When paired with matching inserts and a bulkhead / base housing, it forms a sealed industrial connector interface.
Park Elect+2TME+2

---

Key Features & Specifications

Feature	Description
Housing Type / Series	ILME C‑Type “MHO” series (side‑entry hood)
Shell / Module Size	104.27 mm (fits mating 104 × 27 mm bases / inserts)
Cable Entry / Gland Thread	Side entry via M25 threaded opening
Pegs / Alignment	2 pegs for mechanical alignment to mating base housing
Locking / Closure	Single lever locking (low profile version)
Material & Finish	Die‑cast aluminum body with epoxy coating (protective finish) P
Protection / Ingress	Rated for IP65 / IP66 / IP69 when properly mated and sealed
Operating Temperature	–40 °C to +125 °C
Weight	~218 g (gross)

---

Benefits & Use Cases

• Appropriate for industrial machinery, control systems, automation equipment where side entry is preferred
• Low‑profile side‑entry hood helps minimize interference behind the connector
• Two pegs ensure stable mechanical alignment under repeated mating cycles
• Suitable for harsh environments when used with proper sealing and mating housings
• Ideal when you need a rugged modular connector solution while routing cables laterally

---

Ordering & Compatibility Notes

• The MHO24L25 part is the hood / housing only — it does not include the insert (contacts) or the mating bulkhead / base housing
• To build a fully functioning connector, you will need:
    • A matching 104.27 module insert (male or female)
    • A base / bulkhead housing of the same 104.27 shell size
    • Proper gasket/seal, alignment, and torque to maintain ingress protection
• Use a correct M25 cable gland matching the outer diameter of your cable to maintain sealing
• Double-check peg / hole alignment and lever clearance with your mating parts
