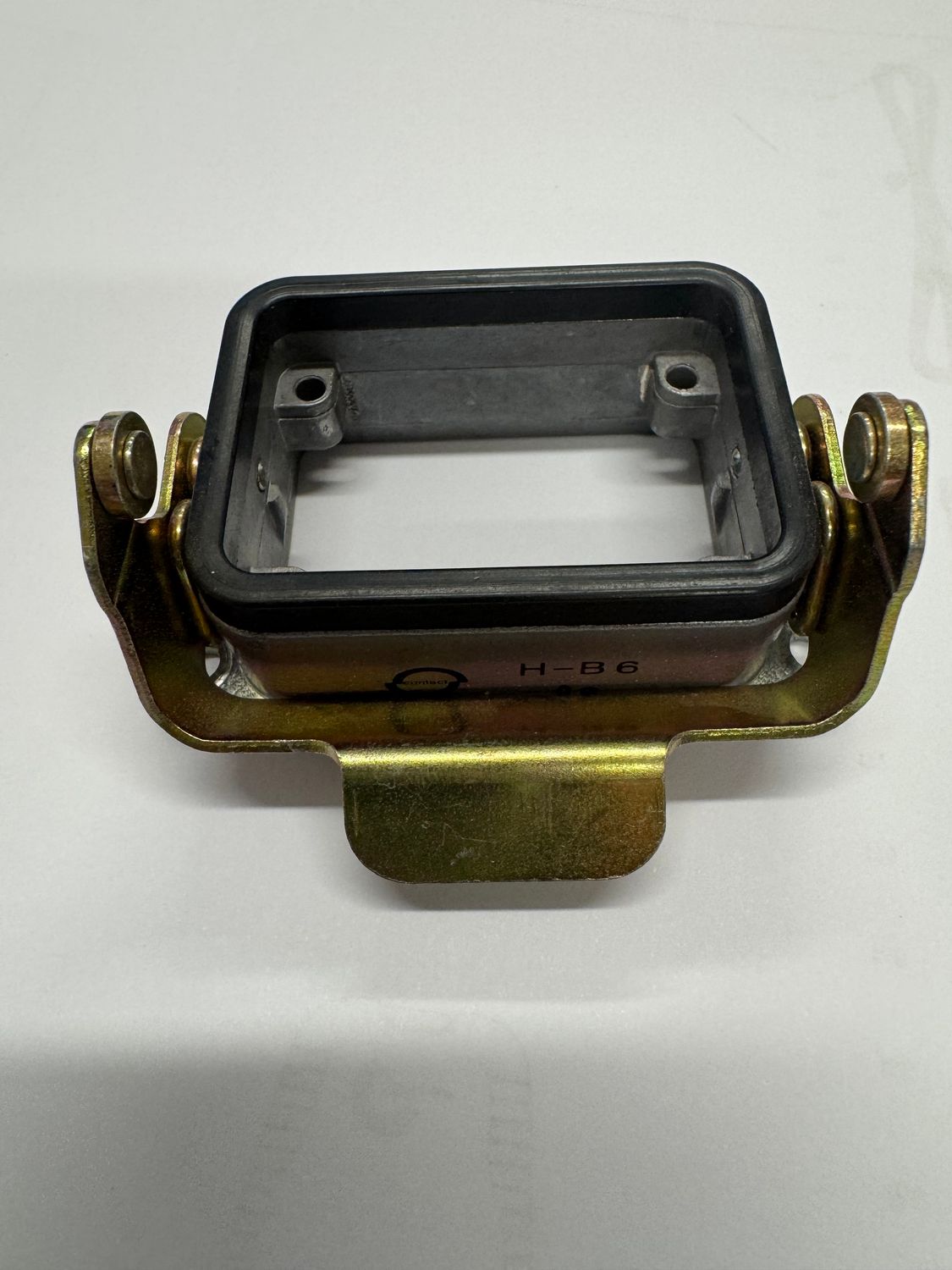

Lapp EPIC H-B 6 AG-LB 6 Pin single Lever Bulk Head Housing
$34.00
EPIC® H‑B 6 AG‑LB — Single‑Lever Bulkhead / Panel Mount Housing for 6‑Pin Inserts
2 available
1
Product Details
- Compact & durable housing: The H‑B 6 is the smallest metal housing in LAPP’s H‑B series, suited for applications that require minimal footprint without compromising robustness.
- Easy and reliable mating: The single‑lever locking ensures a quick, repeatable, secure closure, suitable for environments with vibration or frequent connect/disconnect cycles.
- Protection in industrial settings: With the IP65 rating, it safeguards against dust ingress and low‑pressure water jets when connected properly.
- Wide environmental tolerance: Suitable for cold, heat, and fluctuating conditions common in machinery, control cabinets, and industrial equipment.
- Integration friendly: Designed to accept standard EPIC 6‑pole inserts. Allows modular system building for industrial connectivity.
- Control panels, switchgear, and machine cabinets
- Industrial automation, robotics, and motion systems
- Where a fixed mounting housing is required on a panel, with removable plug / mating connector
- Harsh environments where sealing against dust, oil, or moisture is needed
- Housing only: This product is just the housing / base — it does not include inserts, contacts, or mating shells.
- You must select a compatible 6‑pole insert (male or female) and a corresponding mating hood / connector to complete a full connector system.
- Ensure use of the correct gasket, proper torque, and align the mating parts to maintain the IP65 protection.
- The housing is sometimes listed under part number 10003000 in LAPP’s catalog
EPIC® H‑B 6 AG‑LB — Single‑Lever Bulkhead / Panel Mount Housing for 6‑Pin Inserts
Product Overview
The LAPP EPIC® H‑B 6 AG‑LB is a compact, robust metal housing / base designed for EPIC rectangular connectors. It is intended for panel / bulkhead mounting and supports 6‑pole inserts. The housing features a single lever locking mechanism, durable die‑cast aluminum construction, and protective sealing to support industrial environments.
This housing forms one half of a modular connector system — you install the plug/insert inside the housing, then mate it with a matching counterpart hood or shell to complete a sealed connector assembly.
Key Features & Specifications
| Feature | Details |
|---|---|
| Housing Type / Mounting | Panel / bulkhead mount base (fixed) |
| Locking Mechanism | Single lever latch for quick, secure closure |
| Compatible Insert Size | 6‑pole / “6B” format inserts (6 contacts + optional PE) |
| Material & Finish | Die‑cast aluminium housing, powder-coated grey |
| Sealing / Gasket | Flat gasket included for sealing between housing and panel / cover |
| Ingress Protection (Mated / Latched) | IP 65 rating when properly assembled |
| Operating Temperature Range | –40 °C to +100 °C (short-term up to +125 °C) |
| Panel Cut‑out / Mounting Dimensions | Overall footprint: ~60 mm (length) × ~43 mm width × ~27.8 mm height |
| Weight | ~95.7 g (housing only) |
Benefits & Applications
Typical Use Cases
Ordering / Compatibility Notes
