Product Details

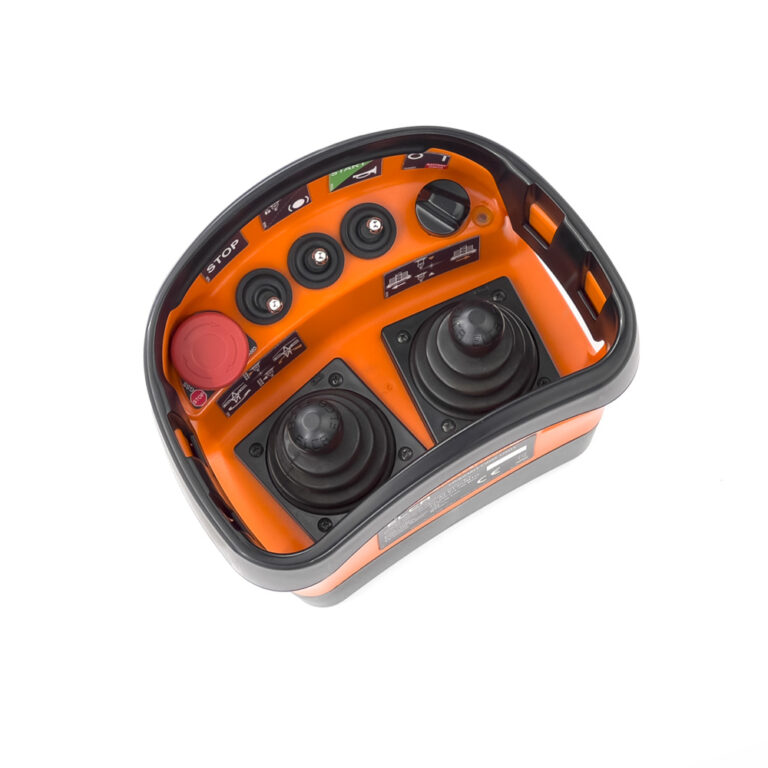

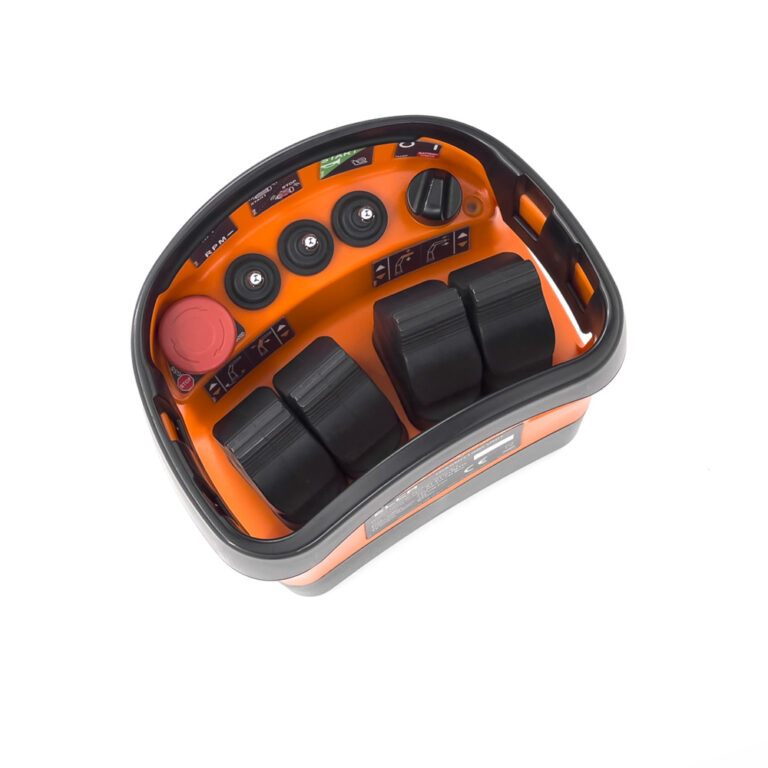

Industrial safety radio controls ELCA PUNTO is a compact joystick.
Standard configurations with 2 on/off joysticks, single or double axis or 2 proportional joystick or 4 mono axis , 3 toggle switches,
removable activation key and Stop push-button. Portable station is customizable accordining to specifications supplied by the customer.
Powered by interchangeable battery with dedicated charger.
It is used in the remote control of septic pumps, dust suppressors, compact presses, quarry machines, sawing machines, mills, screeners,
conveyors, demolishers, drilling machines, tunneling machines, tow trucks, mobile food or shops trucks, tail lifts, tower cranes, self-erecting cranes,
container trucks, hooklift, overhead cranes, beam cranes, tripod cranes, flag cranes, hydraulic cranes for trucks, mobile cranes, aerial platforms,
industrial processes, logistics.
Electronics: E

• Transmitter protection level: IP65
• Receiver protection level: IP44
• Transmitter dimensions: 172 x 130 x 125 mm
• Receiver dimensions: 135 x 255 x 85 mm
• Transmitter weight: 1.1 kg
• Working temperature: -20/+55°C
• Voltage applicable to the contacts: max 220 V
• Operating distance: 150 m
• Band working frequency: ISM : 433,100–434,790 MHz
• y t approx. hours: Autonom a 20°C: 20
