Radio Remote & Control Products

Product Details

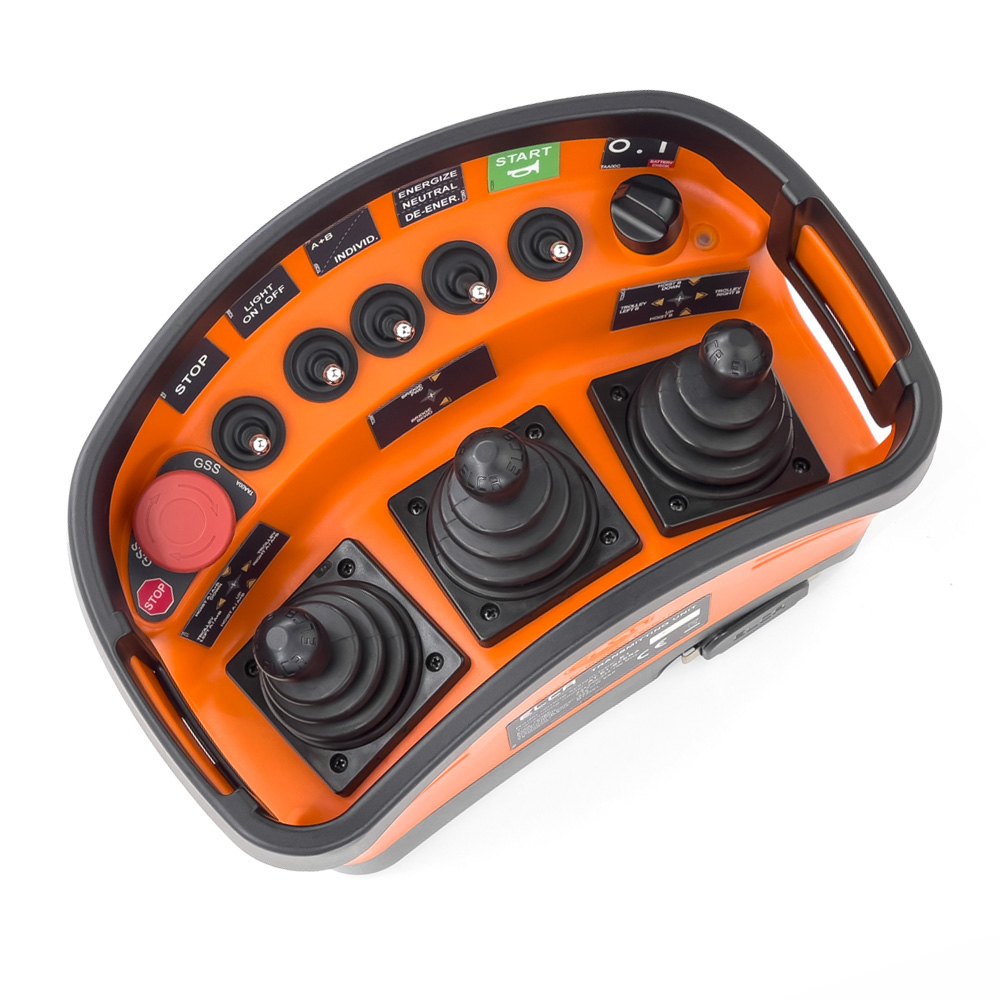

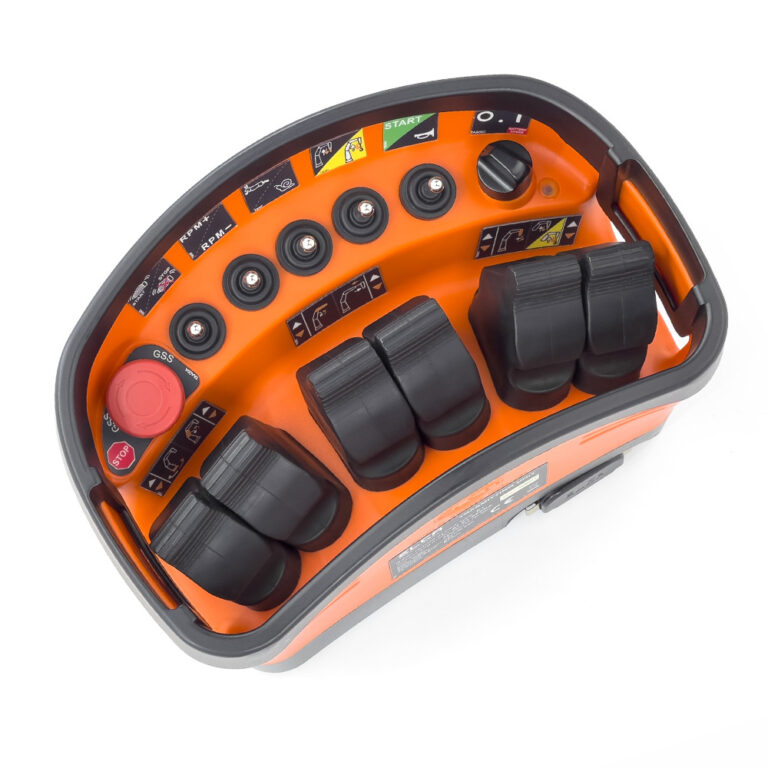

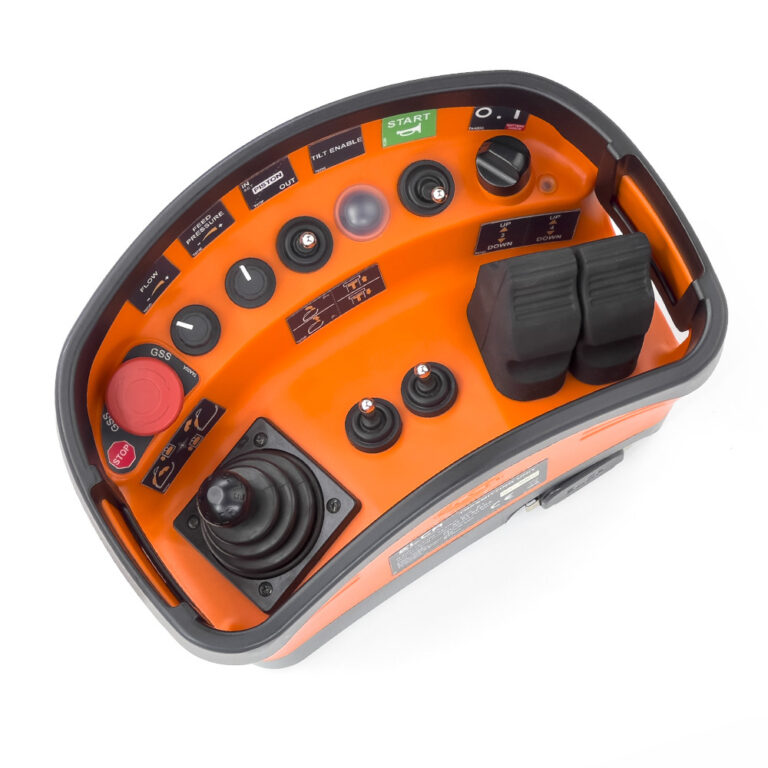

The safety industrial radio control  SFERA, has the same characteristics of PUNTO model even if slightly bigger
to host 3 on/off joysticks, single or double axis or 3 proportional joysticks or 6 single axis, 5 toggle switch, removable activation
key and Stop push-button. Portable station can be adapted to customer needs.
Powered by interchangeable battery with dedicated charger. It is used in the remote control of septic pumps, dust suppressors, compact presses,
quarry machines, sawing machines, mills, screeners, conveyors, demolishers, drilling machines, tunneling machines, tow trucks,
mobile food or shops trucks, tail lifts, tower cranes, self-erecting cranes, container trucks, hooklift, overhead cranes, beam cranes,
tripod cranes, flag cranes, hydraulic cranes for trucks, mobile cranes, aerial platforms, industrial processes, logistics.
Electronics: E

• Transmitter protection level: IP65
• Receiver protection level: IP44
• Transmitter dimensions: 234 x 156 x 141 mm
• Receiver dimensions: 170 x 500 x 90 mm
• Transmitter weight: 1.1 kg
• Working temperature: -20/+55° C
• Voltage applicable to the contacts: 30vDC
• Operating distance: 150 m
• Band working frequency: ISM : 433,100–434,750 MHz
• Approximate battery life: Autonomy a 20°C: 20
