Faber‑Com PRG2‑MC Master Calibration Programmer (PPRG2MC)

Product Snapshot
The PRG2‑MC (also referred to as Master Calibration Programmer or CLG version) is a handheld programming interface used for configuring, calibrating, and adjusting parameter sets on Faber‑Com / Scanreco electronic modules—especially load limiter (CLG) devices and other control cards.

Key Features & Functions

• Full Parameter Access
  Enables access to advanced or “reserved” parameters in Faber‑Com control modules (beyond what standard PRG2 allows).
• LED & Display Feedback
  The device uses LED flash codes (or built‑in display or card feedback) to indicate parameter index and adjustment status.
• Plug‑and‑Play Interface
  Designed to plug into the programming port of Faber‑Com control cards (e.g. load limiters, proportional controllers), even while the system is powered, to enter programming mode.
• Save / Calibrate Control
  Uses combined button inputs (e.g. pressing “PREV + NEXT”) to issue SAVE or CALIBRATE commands, locking in user adjustments to the module’s memory.
• Robust Build for Industrial Use
  Rugged construction suited for workshop or field environments (shock, vibration, dust).
• Compatibility with CLG Load Limiter
  Commonly used in conjunction with Faber‑Com CLG series safety / overload limiter modules.

Technical / Operational Details

• Item Code / Part Number: PPRG2MC (Master Calibration Programmer – CLG version)
• Programming Mode Activation: When connected to a supported Faber‑Com card, the target card detects the presence of the programming unit and switches into parameter editing mode.

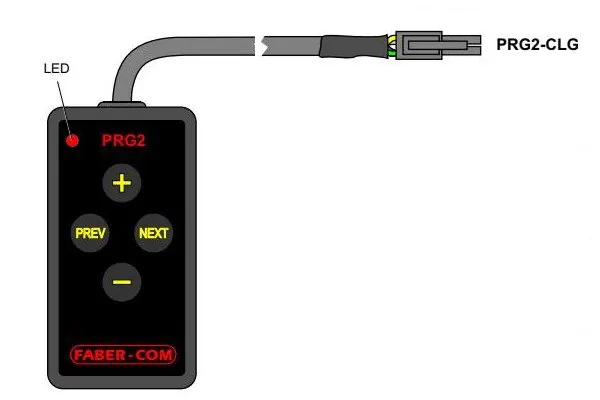

• Parameter Navigation: Four control keys (Prev, Next, +, –) allow stepping through parameter indices and adjusting values. Some keys support autorepeat function.
• Save / Calibration Command: Simultaneous pressing of Prev + Next commands the module to save adjusted parameters into memory (if this is not done, changes may be lost on power cycle).
• LED Feedback: The programmer’s LED blinks in coded sequences to indicate the current parameter index prior to user adjustment.
• Catalog / Integration: The PRG2 and its variants (including PRG2‑MC) are listed within Faber‑Com’s electronics accessories catalog as the programming keyboard for Faber‑Com modules.

Typical Applications

• Load limiter (CLG) setup and calibration
• Fine‑tuning of Faber‑Com proportional controllers, elecronics and safety modules
• Field adjustments without needing a PC interface
• Factory or service center support tool for Faber‑Com system integrators
