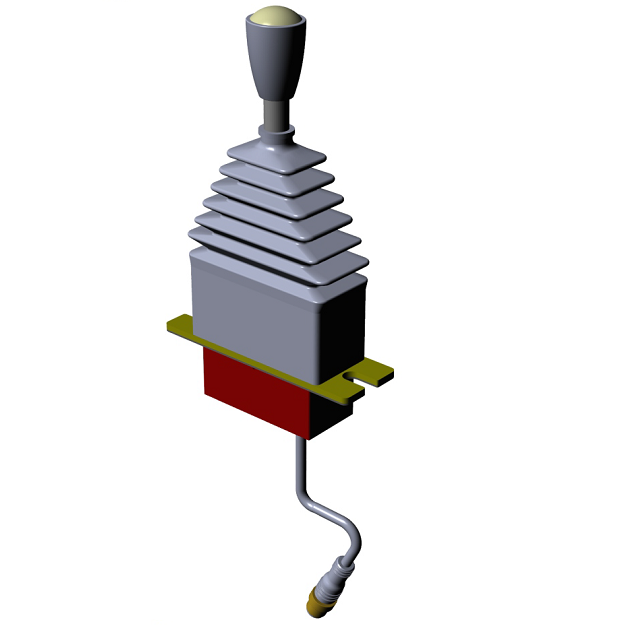

Faber-com MAP CANopen Joystick (PMAPC)

Product Overview

The Faber-com MAP CANopen Joystick (PMAPC) is a high-precision, single-axis electronic joystick designed for demanding industrial and mobile hydraulic applications requiring robust CANopen communication. This joystick delivers reliable proportional control of hydraulic actuators with seamless integration into modern CANopen-based control networks.

Key Features

• CANopen Communication Protocol
   Enables straightforward integration with CANopen networks, supporting configurable node IDs, baud rates, and standardized message handling.
• Non-Contact Hall Effect Sensing
   Employs redundant Hall effect sensors to provide accurate, wear-free position feedback via a permanent magnet, enhancing durability and long-term reliability.
• Programmable Parameters
   Offers flexible configuration of CAN transmission parameters, output signal curves (linear or parabolic), and device behavior via dedicated software tools.
• Rugged Design
   Constructed with corrosion-resistant materials and sealed electronics, the joystick withstands harsh industrial environments, offering IP65 or higher ingress protection.
• Standardized Connectivity
   Equipped with a 20 cm cable terminated with a Deutsch DT04-8 connector, ensuring secure and reliable connections.

Technical Specifications

Parameter	Specification
Supply Voltage	10–30 V DC
Communication Protocol	CANopen
Output Type	Proportional single-axis
Operating Temperature	–40°C to +70°C
Ingress Protection	IP65 or higher
Connector	Deutsch DT04-8 (20 cm cable)

Applications

• Industrial hydraulic control systems requiring CANopen communication
• Mobile machinery demanding reliable proportional joystick control
• Automation and process control environments utilizing CANopen networks

---

For detailed technical documentation, including wiring diagrams, configuration software, and mechanical drawings, please contact your Faber-com representative.

---
