Faber-com MAC2 Single axis joystick CAN BUS

Category

Control Systems

Type

CAN Bus

No Of Functions

1 - 8 | proportional

Brand

Faber-com

View Product Data Sheet Buy Now

Product Details

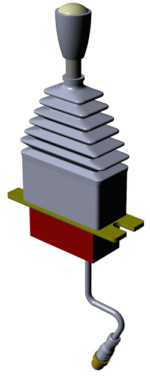

Faber-com MAC2 Single axis joystick CAN BUS

Main features:

The MAC2 is a single axis electronic joystick with CANbus output.

Joystick command is based on the measurement of magnetic field of a
permanent magnet through redundant Hall effect probes, not subject to
wear and tear.

Main characteristics:
– programmable transmission parameters: CANbus speed, device nodeID,
data timing;
– synchronous or asynchronous transmission (selectable);
– output curve shape: linear or parabolic (selectable);
– frictioned lever version available.

The fundamental operative parameters are programmable through CAN
messages.

All working parameters are adjustable through a serial port and the
Windows® SepSim program using a special serial port adapter (AISR).

This product is also available with:
– signal output voltage (MAS2) to interface with a PLC;
– PWM power output MAP2 (to command directly the solenoids).

CONNECTIONS
The MAC2 joystick is provided with a M12 male connector.
