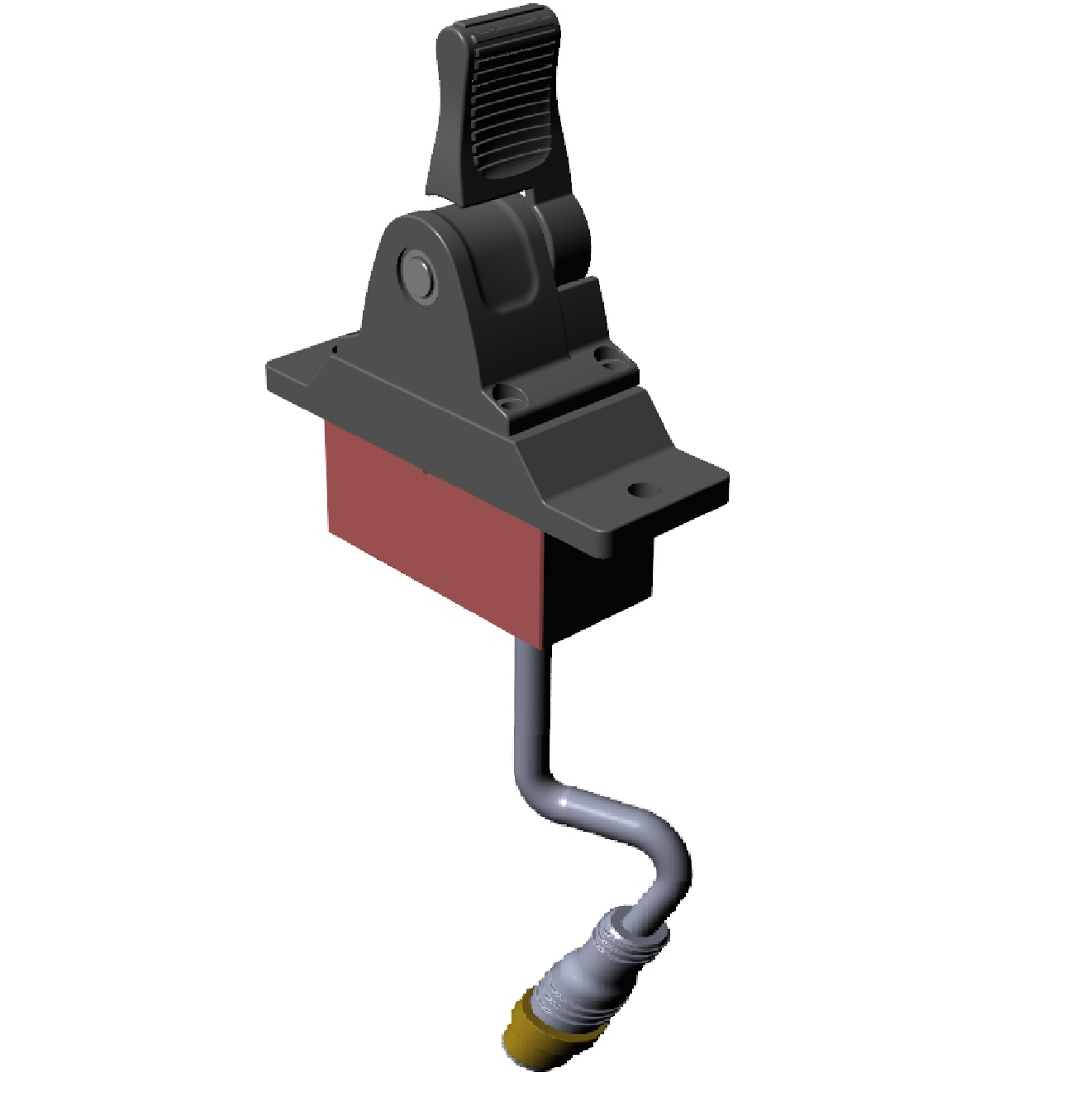

Faber-com MAC2L CAN open Joystick

Product Overview

The Faber-com MAC2L is a single-axis electronic joystick designed for precise control in hydraulic and mobile machinery applications. Utilizing Hall effect sensing technology, it offers wear-free operation, enhancing durability and reliability in demanding environments.

Key Features

• CANopen Communication Protocol: Facilitates seamless integration into CANopen-based control systems, supporting customizable parameters such as baud rate, node ID, and data timing.
• Programmable Output Characteristics: Allows selection between linear or parabolic output curves, and supports both synchronous and asynchronous transmission modes.
• Redundant Hall Effect Sensing: Employs dual Hall effect sensors to detect the position of a permanent magnet, ensuring precise and contactless measurement.
• Environmental Protection: Designed with an IP67 rating, the joystick is sealed against dust and water ingress, making it suitable for harsh industrial and outdoor environments.
• Connector Interface: Equipped with a M12 male connector for secure and standardized electrical connections.

Technical Specifications

Parameter	Specification
Supply Voltage	10–30 V DC
Communication Protocol	CANopen
Output Types	Proportional (single-axis)
Operating Temperature	–40°C to +70°C
Ingress Protection	IP67
Connector	M12 male

Applications

• Hydraulic Control Systems: Ideal for controlling hydraulic actuators in construction, agricultural, and industrial machinery.
• Mobile Equipment: Suitable for use in mobile equipment requiring precise joystick control.
• Automation Systems: Applicable in automated systems where CAN open communication is utilized.
