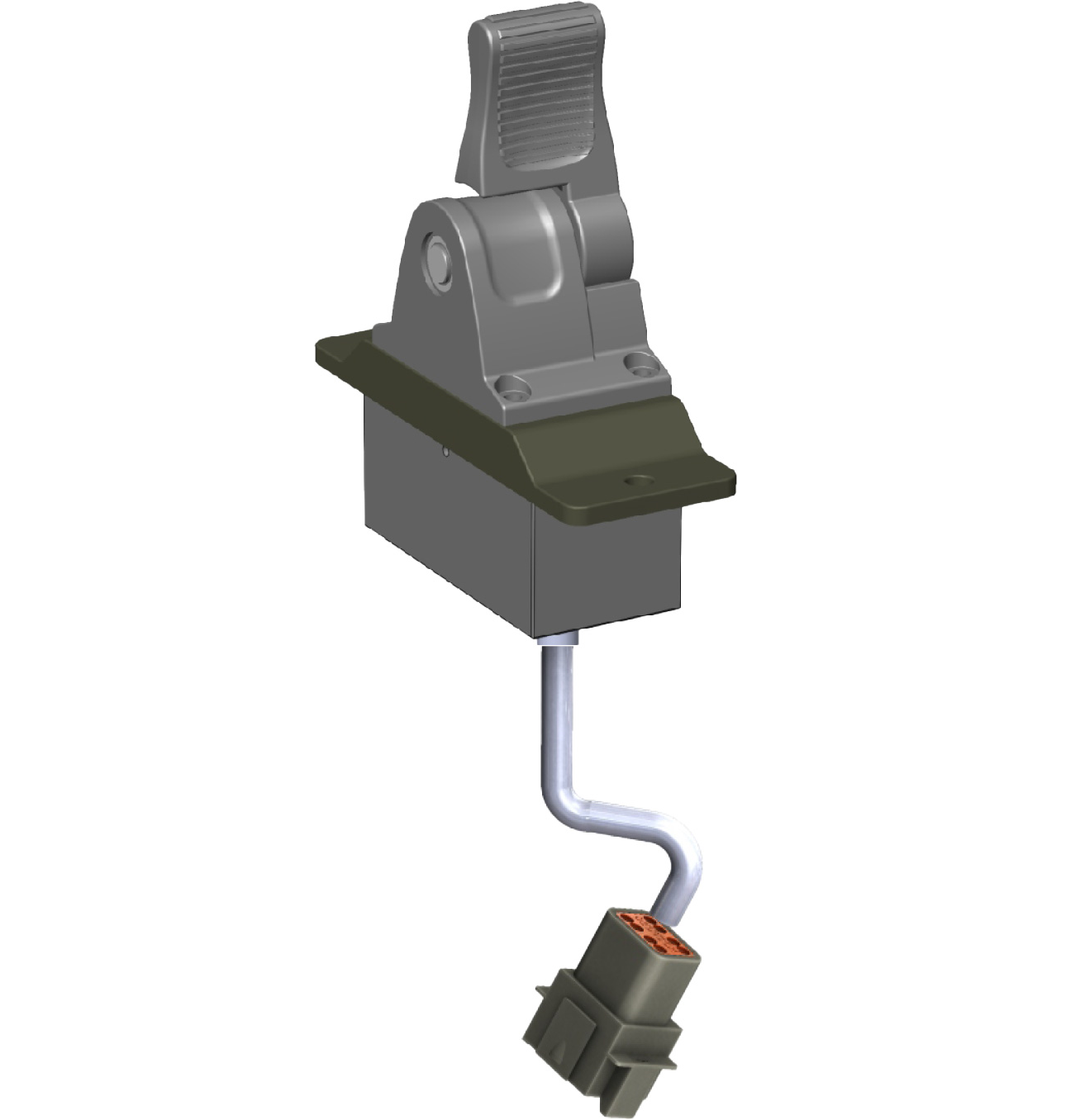

Faber‑com MAP3L / PMAP3L Marine Joystick (PWM / Voltage Output)
Product Description
The MAP3L (sometimes designated PMAP3L) is a marine‑rated, single-axis, electronic joystick designed to directly output PWM signals (and optionally voltage / ratiometric outputs) for controlling proportional solenoid valves. It is engineered for harsh environments, offering corrosion resistance, sealed electronics, and robust control features for marine or offshore hydraulic systems.
Features & Capabilities
- Dual PWM Outputs
Provides two independent PWM outputs (A + B) to drive proportional solenoids in both directions (forward / reverse).
- Adjustable Output Parameters
Users can set minimum current, maximum current, ramp (rise/fall) times (up to ~25 s in 0.1 s steps), and PWM frequency (50 to 300 Hz) per direction.
- Direct Drive
The joystick is capable of directly driving PWM solenoids without needing a separate driver module (i.e. no external amplifier needed).
- Non‑Contact Sensing
Uses redundant Hall effect probes to sense the position of a permanent magnet. Since it's non-contact, the system is immune to mechanical wear.
- Marine Construction
Built for marine applications: stainless materials, anodized surfaces, and full sealing for salt, moisture, and environmental resilience. LED Status Indicator
- A multicolored LED mounted under the panel indicates operating state, power, and fault codes.
- Configuration / Programming
Parameter adjustments (current limits, ramps, frequency, curve shape, digital I/O) are done via a serial interface using Faber‑com’s configuration tools (e.g., SepSim) and a serial adapter (AISR / PISPR).
- Connector & Wiring
Standard configuration uses a 20 cm cable with a Deutsch DT04‑8 connector. Operating Conditions
-
- Supply Voltage: ~10 to 30 VDC
- Operating Temp.: –40°C to +70°C
- Mechanical Travel: ± ~26° lever deflection
- Ingress Protection: IP67 (when mounted properly)
Provides two independent PWM outputs (A + B) to drive proportional solenoids in both directions (forward / reverse).
Users can set minimum current, maximum current, ramp (rise/fall) times (up to ~25 s in 0.1 s steps), and PWM frequency (50 to 300 Hz) per direction.
The joystick is capable of directly driving PWM solenoids without needing a separate driver module (i.e. no external amplifier needed).
Uses redundant Hall effect probes to sense the position of a permanent magnet. Since it's non-contact, the system is immune to mechanical wear.
Built for marine applications: stainless materials, anodized surfaces, and full sealing for salt, moisture, and environmental resilience. LED Status Indicator
Parameter adjustments (current limits, ramps, frequency, curve shape, digital I/O) are done via a serial interface using Faber‑com’s configuration tools (e.g., SepSim) and a serial adapter (AISR / PISPR).
Standard configuration uses a 20 cm cable with a Deutsch DT04‑8 connector. Operating Conditions
- Supply Voltage: ~10 to 30 VDC
- Operating Temp.: –40°C to +70°C
- Mechanical Travel: ± ~26° lever deflection
- Ingress Protection: IP67 (when mounted properly)
Typical Applications
- Hydraulic control in marine and offshore equipment (thrusters, winches, stabilizers)
- Joystick-based proportional valve control in wet or corrosive environments
- Systems requiring integrated PWM control without separate driver modules
- Applications where programmability and adaptation are required (via software)
