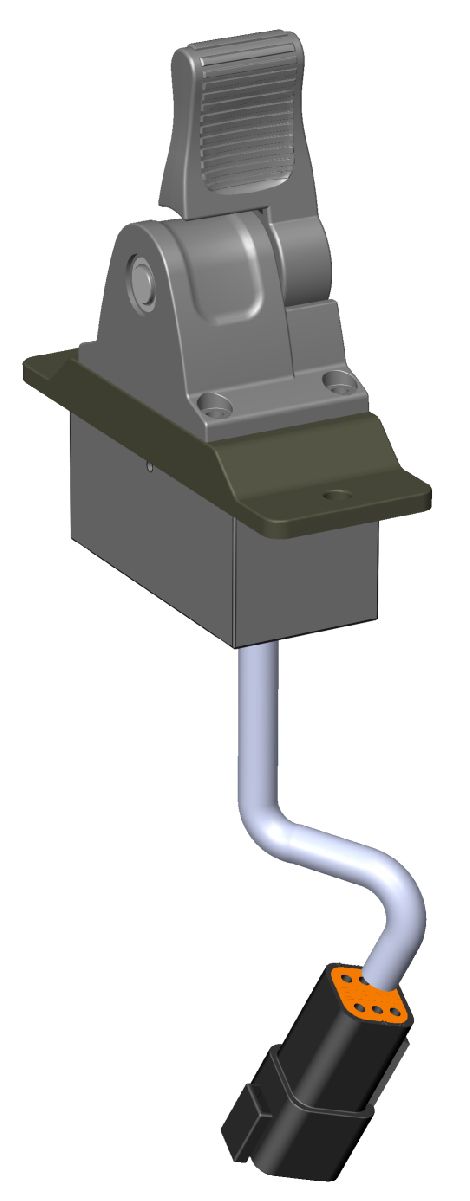

Faber‑com MAS3L Marine Joystick – Voltage / Danfoss Output

Overview

The MAS3L is a marine‑rated, single‑axis electronic joystick developed by Faber‑com for control systems requiring precise voltage (analog) or ratiometric output signals—particularly compatible with Danfoss proportional valve systems. It is the marine variant of the MAS2L joystick, adapted to withstand harsh, corrosive environments commonly encountered in maritime applications.

The joystick leverages non‑contact magnetic (Hall effect) sensors, offering wear-free operation and long-term reliability under high duty cycles.

---

Key Features & Capabilities

• Output Types & Ranges
    Supports a variety of analog/voltage output options including:
   • 0 → 5 V
   • 0 → 10 V
   • 5 → 0 → 5 V (centered)
   • 0.5 → 2.5 → 4.5 V
   • Fully configurable ranges within 0–10 V
    Also supports ratiometric output (25% / 50% / 75% of supply voltage) for seamless integration with Danfoss systems.
• Marine-Hardened Construction
    Built with materials and finishes suited for marine environments (e.g. corrosion resistance), making it ideal for boats, offshore platforms, or marine machinery control.
• Redundant Hall‑Effect Sensing
    Utilizes dual magnetic sensors to ensure reliability and fault tolerance; no mechanical potentiometers so there is minimal wear and drift.
• Direct Control Without Additional Drivers
    Capable of directly driving analog or ratiometric valve control systems (e.g. Danfoss valves) without needing intermediate driver cards.
• Configurable Output Characteristics
    Allows customization of deadband, output scaling, and curve shape to match system response requirements.
• Compact & Panel-Mountable
    Designed for simple panel installation, with sealed internal electronics to manage moisture and salt exposure.
• Operating Conditions
   • Supply voltage: 10 – 30 VDC
   • Temperature range: –40 °C to +70 °C
   • Connector: Deutsch DT04‑8 cable interface (20 cm lead)
   • Mechanical travel: ±26°

---

Typical Applications

• Control of marine hydraulic or electro-hydraulic systems (e.g. thrusters, stabilizers)
• Joystick input for navigation, steering, crane or deck machinery on ships
• Integration with Danfoss proportional valves or control modules
• Any environment requiring reliable analog/ratiometric joystick control in wet, corrosive or salt-laden atmospheres
