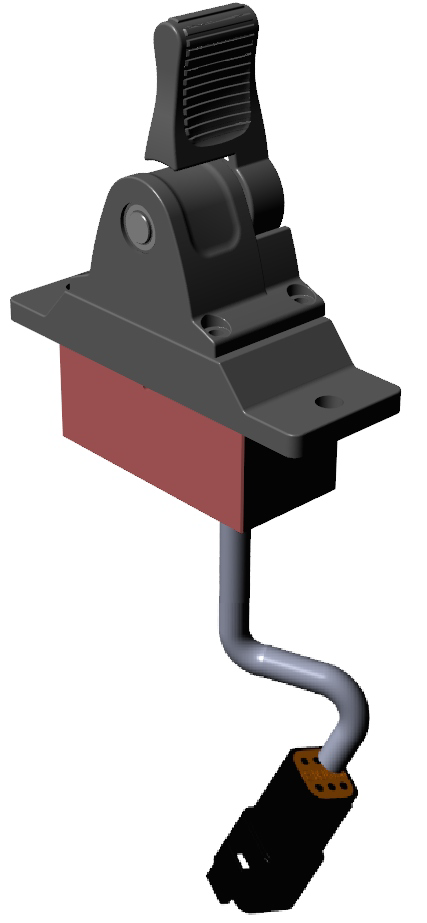

Faber‑com MAS2L Joystick (Voltage / Signal Output)

Description

The MAS2L is a single-axis electronic joystick that outputs a voltage (signal) output ideal for controlling proportional hydraulic systems. It is part of Faber‑com’s MAS/MAP joystick family, where MAS versions provide signal outputs and MAP versions provide power (PWM) outputs.

It uses redundant Hall effect sensors to detect the position of a permanent magnet (i.e., the joystick lever), which eliminates mechanical wear and ensures long-term reliability.

---

Key Specifications & Features

Feature	Specification
Output Type	Voltage / signal (analog)
Configurable Output Ranges	0 – 5 V, 0 – 10 V, 5 → 0 → 5 V, 0.5 → 2.5 → 4.5 V, or any custom range within 0–10 V
Ratiometric Output Support	Yes — supports 25 %, 50 %, or 75 % of supply voltage for compatibility with Danfoss valve inputs
Supply Voltage	10–30 V DC typical
Maximum Signal Output Current	~10 mA (designed for analog/signal-level demand)
Programming / Adjustability	Deadband, signal span, ramp (rise/fall), output curve (linear or parabolic), output direction blocking, speed selection, etc.
Indicator LED	A multicolor LED (visible below the mounting panel) shows supply and status indications (normal, error)
Mechanical / Electrical Interface	Typically includes a 20 cm cable with Deutsch connector (e.g. DT04‑6 for MAS2L variant)
Operating Conditions	Temperature range –40 °C to +70 °C
Mechanical Travel / Angle	±30° (approx.) lever deflection
Protection & Reliability	The output and electronics are protected against short circuits, and the Hall sensors are wear‑resistant.

---

Applications & Integration

• Direct interface to control systems requiring analog input (PLC, proportional valve driver modules, etc.)
• Designed to work seamlessly with Danfoss proportional valves using ratiometric signals
• Ideal for control panels in mobile machines, marine hydraulic systems, cranes, and industrial machinery
• Suitable for wet or demanding environments when paired with the marine-rated or sealed versions
